Leader-Based Replication

0. Overview

• Each node that stores a copy of the database is called a replica. Every write to the database needs to be processed by every replica; otherwise, the replicas would no longer contain the same data. The most common solution for this is called leader-based replication (active/passive or master-slave replication). It works as follows:

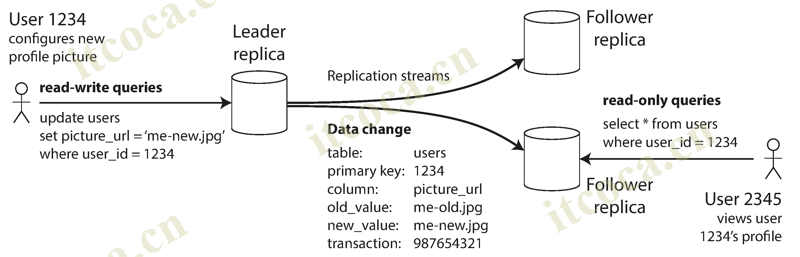

  1. One of the replicas is designated the leader (master or primary). When clients want to write to the database, they must send their requests to the leader, which first writes the new data to its local storage
  2. The other replicas are known as followers (read replicas, slaves, secondaries, or hot standbys). Whenever the leader writes new data to its local storage, it also sends the data change to all of its followers as part of a replication log or change stream. Each follower takes the log from the leader and updates its local copy of the database accordingly, by applying all writes in the same order as they were processed on the leader
  3. When a client wants to read from the database, it can query either the leader or any of the followers. However, writes are only accepted on the leader
• This mode of replication is a built-in feature of many relational databases, such as PostgreSQL (since version 9.0), MySQL, Oracle Data Guard, and SQL Server’s AlwaysOn Availability Groups. It is also used in some nonrelational databases, including MongoDB, RethinkDB, and Espresso. Finally, leader-based replication is not restricted to only databases: distributed message brokers such as Kafka and RabbitMQ highly available queues also use it. Some network filesystems and replicated block devices such as DRBD are similar

1. Synchronous Versus Asynchronous Replication

• In the example, the replication to follower 1 is synchronous: the leader waits until follower 1 has confirmed that it received the write before reporting success to the user, and before making the write visible to other clients. The replication to follower 2 is asynchronous: the leader sends the message, but doesn’t wait for a response from the follower
  • The advantage of synchronous replication is that the follower is guaranteed to have an up-to-date copy of the data that is consistent with the leader. The disadvantage is that if the synchronous follower doesn’t respond (crashed, network fault, …), the write cannot be processed. The leader must block all writes and wait until the synchronous replica is available again
  • For that reason, it is impractical for all followers to be synchronous. In practice, if you enable synchronous replication on a database, it usually means that one of the followers is synchronous, and the others are asynchronous. If the synchronous follower becomes unavailable or slow, one of the asynchronous followers is made synchronous. This configuration is sometimes also called semi-synchronous
  • Often, leader-based replication is configured to be completely asynchronous. In this case, if the leader fails and is not recoverable, any writes that have not yet been replicated to followers are lost. This means that a write is not guaranteed to be durable, even if it has been confirmed to the client
• Weakening durability may sound like a bad trade-off, but asynchronous replication is nevertheless widely used, especially if there are many followers or if they are geographically distributed

• It can be a serious problem for asynchronously replicated systems to lose data if the leader fails, so researchers have continued investigating replication methods that do not lose data but still provide good performance and availability. For example, chain replication is a variant of synchronous replication that has been successfully implemented in a few systems such as Microsoft Azure Storage

2. Setting Up New Followers

• If you need to set up new followers, simply copying data files from one node to another is typically not sufficient: clients are constantly writing to the database, and the data is always in flux. We could lock the database (making it unavailable for writes), but that would go against the goal of high availability. Conceptually we use the following process to set followers:
  1. Take a consistent snapshot of the leader’s database at some point in time—if possible, without taking a lock on the entire database. Most databases have this feature, as it is also required for backups. In some cases, third-party tools are needed, such as innobackupex for MySQL
  2. Copy the snapshot to the new follower node
  3. The follower connects to the leader and requests all the data changes that have happened since the snapshot was taken. This requires that the snapshot is associated with an exact position in the leader’s replication log. That position has various names: for example, PostgreSQL calls it the log sequence number, and MySQL calls it the binlog coordinates
  4. When the follower has processed the backlog of data changes since the snapshot, we say it has caught up. It can now continue to process data changes from the leader as they happen
• The practical steps of setting up a follower vary significantly by database. In some systems the process is fully automated, whereas in others it can be a somewhat arcane multi-step workflow that needs to be manually performed by an administrator

3. Handling Node Outages

• Being able to reboot individual nodes without downtime is a big advantage for operations and maintenance. Thus, our goal is to keep the system as a whole running despite individual node failures, and to keep the impact of a node outage as small as possible

3.1. Follower failure: Catch-up recovery

• Each follower keeps a log of the data changes it has received from the leader on its local disk. If a follower crashes and is restarted, the follower can recover quite easily: from its log, it knows the last transaction that was processed before the fault occurred. Thus, the follower can connect to the leader and request all the data changes that occurred during the time when the follower was disconnected

3.2. Leader failure: Failover

• Handling a failure of the leader is trickier: one of the followers needs to be promoted to be the new leader, clients need to be reconfigured to send their writes to the new leader, and the other followers need to start consuming data changes from the new leader. This process is called failover
• Failover can happen manually or automatically. An automatic failover process usually consists of the following steps:
  1. Determining that the leader has failed. There are many things that could potentially go wrong: crashes, power outages, network issues, and more. There is no foolproof way of detecting what has gone wrong, so most systems simply use a timeout: nodes frequently bounce messages back and forth between each other, and if a node doesn’t respond for some period of time—say, 30 seconds—it is assumed to be dead
  2. Choosing a new leader. This could be done through an election process (where the leader is chosen by a majority of the remaining replicas), or a new leader could be appointed by a previously elected controller node. The best candidate for leadership is usually the replica with the most up-to-date data changes from the old leader (to minimize any data loss). Getting all the nodes to agree on a new leader is a consensus problem
  3. Reconfiguring the system to use the new leader. Clients now need to send their write requests to the new leader. If the old leader comes back, it might still believe that it is the leader, not realizing that the other replicas have forced it to step down. The system needs to ensure that the old leader becomes a follower and recognizes the new leader
• Failover is fraught with things that can go wrong:
  • If asynchronous replication is used, the new leader may not have received all the writes from the old leader before it failed. If the former leader rejoins the cluster after a new leader has been chosen, the most common solution is for the old leader’s unreplicated writes to simply be discarded, which may violate clients’ durability expectations
  • Discarding writes is especially dangerous if other storage systems outside of the database need to be coordinated with the database contents. For example, in one incident at GitHub, an out-of-date MySQL follower was promoted to leader. The database used an autoincrementing counter to assign primary keys to new rows, but because the new leader’s counter lagged behind the old leader’s, it reused some primary keys that were previously assigned by the old leader. These primary keys were also used in a Redis store, so the reuse of primary keys resulted in inconsistency between MySQL and Redis, which caused some private data to be disclosed to the wrong users
  • In certain fault scenarios, it could happen that two nodes both believe that they are the leader. This situation is called split brain, and it is dangerous: if both leaders accept writes, and there is no process for resolving conflicts, data is likely to be lost or corrupted. As a safety catch, some systems have a mechanism to shut down one node if two leaders are detected. However, if this mechanism is not carefully designed, you can end up with both nodes being shut down
  • What is the right timeout before the leader is declared dead? A longer timeout means a longer time to recovery in the case where the leader fails. However, if the timeout is too short, there could be unnecessary failovers. For example, a temporary load spike could cause a node’s response time to increase above the timeout, or a network glitch could cause delayed packets. If the system is already struggling with high load or network problems, an unnecessary failover is likely to make the situation worse, not better
• These issues—node failures; unreliable networks; and trade-offs around replica consistency, durability, availability, and latency—are in fact fundamental problems in distributed systems. There are no easy solutions to these problems. For this reason, some operations teams prefer to perform failovers manually, even if the software supports automatic failover

4. Implementation of Replication Logs

• Several different replication methods are used in practice to implement leader-based replication

4.1. Statement-based replication

• In the simplest case, the leader logs every write request (statement) that it executes and sends that statement log to its followers, each follower parses and executes that statement as if it had been received from a client. But there are various ways in which this approach to replication can break down:
  • Any statement that calls a nondeterministic function, such as NOW() to get the current date and time or RAND() to get a random number, is likely to generate a different value on each replica
  • If statements use an autoincrementing column, or if they depend on the existing data in the database (e.g., UPDATE … WHERE …), they must be executed in exactly the same order on each replica, or else they may have a different effect. This can be limiting when there are multiple concurrently executing transactions
  • Statements that have side effects (e.g., triggers, stored procedures, user-defined functions) may result in different side effects occurring on each replica, unless the side effects are absolutely deterministic
• It is possible to work around those issues—for example, the leader can replace any nondeterministic function calls with a fixed return value when the statement is logged so that the followers all get the same value. However, because there are so many edge cases, other replication methods are now generally preferred

• Statement-based replication was used in MySQL before version 5.1. It is still sometimes used today, as it is quite compact, but by default MySQL now switches to row-based replication if there is any nondeterminism in a statement. VoltDB uses statement-based replication, and makes it safe by requiring transactions to be deterministic

4.2. Write-ahead log (WAL) shipping

• Usually every write is appended to a log:
  • In the case of a log-structured storage engine, this log is the main place for storage. Log segments are compacted and garbage-collected in the background
  • In the case of a B-tree, which overwrites individual disk blocks, every modification is first written to a write-ahead log so that the index can be restored to a consistent state after a crash
• In either case, the log is an append-only sequence of bytes containing all writes to the database. We can use the exact same log to build a replica on another node: besides writing the log to disk, the leader also sends it across the network to its followers
• This method of replication is used in PostgreSQL and Oracle, among others. The main disadvantage is that the log describes the data on a very low level: a WAL contains details of which bytes were changed in which disk blocks. This makes replication closely coupled to the storage engine. If the database changes its storage format from one version to another, it is typically not possible to run different versions of the database software on the leader and the followers

4.3. Logical (row-based) log replication

• An alternative is to use different log formats for replication and for the storage engine, which allows the replication log to be decoupled from the storage engine internals. This kind of replication log is called a logical log, to distinguish it from the storage engine’s (physical) data representation
• A logical log for a relational database is usually a sequence of records describing writes to database tables at the granularity of a row:
  • For an inserted row, the log contains the new values of all columns
  • For a deleted row, the log contains enough information to uniquely identify the row that was deleted. Typically this would be the primary key, but if there is no primary key on the table, the old values of all columns need to be logged
  • For an updated row, the log contains enough information to uniquely identify the updated row, and the new values of all columns (or at least the new values of all columns that changed)
• A transaction that modifies several rows generates several such log records, followed by a record indicating that the transaction was committed. MySQL’s binlog (when configured to use row-based replication) uses this approach
• A logical log can more easily be kept backward compatible, allowing the leader and the follower to run different versions of the database software, or even different storage engines. It is also easier for external applications (data warehouse for offline analysis or caches) to parse, this technique is called change data capture

4.4. Trigger-based replication

• The replication approaches described so far are implemented by the database system, without involving any application code. There are some circumstances where more flexibility is needed, for example, if you want to only replicate a subset of the data, or want to replicate from one kind of database to another, or if you need conflict resolution logic, then you may need to move replication up to the application layer
• Some tools, such as Oracle GoldenGate, can make data changes available to an application by reading the database log. An alternative is to use features that are available in many relational databases: triggers and stored procedures
• A trigger lets you register custom application code that is automatically executed when a data change (write transaction) occurs in a database system. The trigger has the opportunity to log this change into a separate table, from which it can be read by an external process. That external process can then apply any necessary application logic and replicate the data change to another system. Databus for Oracle and Bucardo for Postgres work like this, for example
• Trigger-based replication typically has greater overheads than other replication methods, and is more prone to bugs and limitations than the database’s built-in replication. However, it can nevertheless be useful due to its flexibility

References

• Designing Data-Intensive Application
